ABIT AT7 Max2 KT400 Gallery (4)
Overclocker 26 Sept 2002

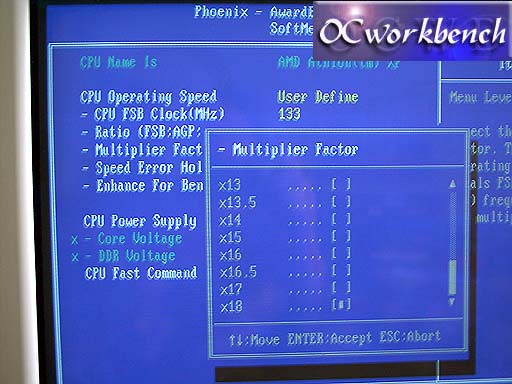

ABIT AT7 Max2 provides a large range of multipliers so you do not need to worry about the problem of compatibility with future CPUs with higher multiplier of up to 18x.

Core Voltage and DDR voltage are adjustable within BIOS. AGP voltage is not available. In the BIOS, it is possible to reach a high of 3.25v for the DDR module and Vcore can be pushed all the way up to 2.325v. If you are the adventurous, you might want to give it a overclock.

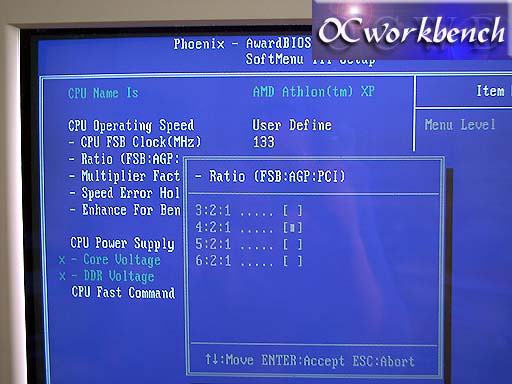

ABIT SoftMenuIII allows quite flexible combinations of Ratios too. 3:2:1, 4:2:1, 5:2:1, 6:2:1. Looks like you would be running 33/66 (PCI/AGP) when your FSB is 200Mhz

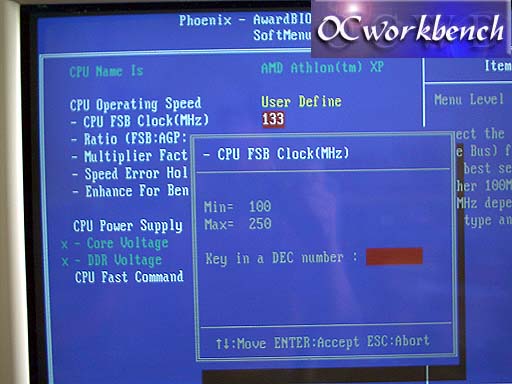

FSB range : 100 ~ 250 at 1mhz stepping

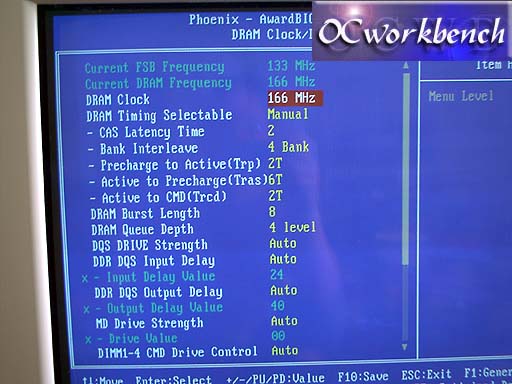

In our test setup, we ran the system at the following timings below. CAS 2, 2-6-2 (Active to precharge does not have a setting for 5). Burst Length 8,

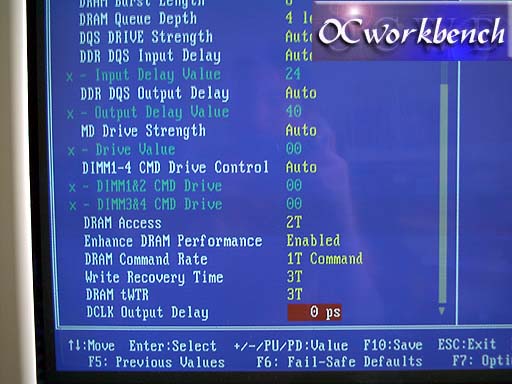

DRAM Command Rate 1T cmd, DRAM Performance is set to Enhanced. RAM Module used is 1 x 512M Corsair XMS 3200.
