天烽 8K3A+ 测试报道 (2)
 Overclocker 28 Mar 2002

测试

We conduct the usual tests on the setup with the following configuration :

Test System:

  • AMD AthlonXP 1500+ and Thermoengine heatsink/fan
  • IBM 15G 7200RPM ATA100 HD
  • AOPEN 40X CDROM
  • MSI Geforce3 Ti200 Graphics card
  • Nanya DDR333 256MB DDR
  • Channelwell 375W AMD Approved PSU

我们已wcpuid可看出在133mhz时，外频准不准确。133.64 可以接受。有些板子偷偷超频到134.2，那当然会影响到整体的表现。

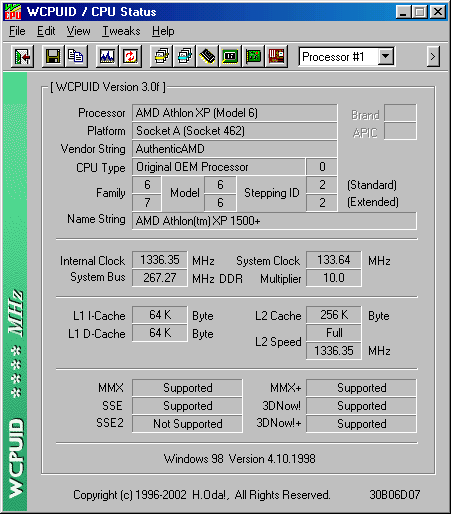

WCPUID Screen Shot

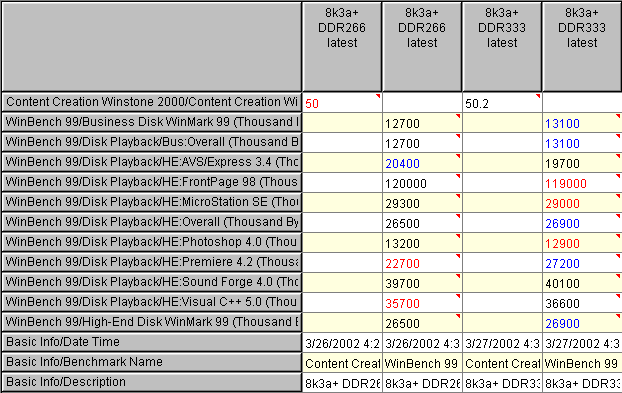

ZD Winbench99 and CC Winstone 2000 scores

Summary

Based on the AthlonXP1500+

很明显的，对比的另外3片主机板都有差不多的成绩。可以看得出来在异步ddr333,的确能够提高效能。但效能提高不是很多。

  天烽 8K3A+
1T cmd, Cas2, Ultra DDR266		 天烽 8K3A+
1T cmd, Cas2, Ultra DDR333		 Shuttle AK35GTR
v2.2
1T cmd, Cas2, Ultra DDR333		 MSI KT3 Ultra ARU
1T cmd, Cas2, Ultra DDR266		 MSI KT3 Ultra ARU
1T cmd, Cas2, Ultra DDR333		 Gigabyte 7VRXP
1T cmd, Cas2, Ultra DDR266		 Gigabyte 7VRXP
2T cmd, Cas2, Ultra DDR333		 Shuttle Ak35GTR 1T cmd Cas 2 Gigabyte 7VTXH+
1T cmd, Cas2		 ABIT KR7A
RAID CAS2, 1Tcmd,CPU
Fast Command decode Ultra		 EPoX 8KTA+ Cas2,1T
CMD		 Shuttle AK31 v3.1
Peformance Defaults		 MSI K7T266
Pro2-RU High Performance Defaults
CC Winstone2000 50.0
(50.0)		 50.2
(51.2)		 50.5 48.7 49.5 50.2 49.7 49.8 49.8 49.1 48 48 46.2
CPUMark99 - - - - - - - - - 128 126 125 126
FPUmark99 - - - - - - - - - 7290 7300 7270 7290
Business Disk Winmark 12700
(10800)		 13100
(13000)		 12800 13000 12900 13100 13200 8080 13330 6930 5660 7410 7190
High End Disk Winmark 26500
(26700)		 26900
(26400)		 27200 27500 27600 26800 27300 22800 27400 23100 22500 25700 24400



  Iwill XP333 v2.0 CAS2 Fast ECS K7S6A Ultra timings Leadtek 7350KDA Ultra timings ECS K7S5A Ultra timings
CC Winstone2000 48.5 49.1 46.2 46.1
CPUMark99 124 - 125 123
FPUmark99 7230 - 7240 7260
Business Disk Winmark 6790 7810 6260 8630
High End Disk Winmark 23100 22400 20800 24800

FSB

EPoX 8K3A+ = 133.64Mhz
Shuttle AK35GTR = 133.5Mhz
MSI KT3 Ultra ARU = 133.34Mhz
Gigabyte 7VRXP = 133.9Mhz
ECS K7S6A = 133.9Mhz
Gigabyte 7VTXH+ = 134.2Mhz
ABIT KR7A RAID = 133.39Mhz
EPoX 8KHA+ = 133.64Mhz
Iwill XP333 = 132.68Mhz
Shuttle AK31 v3.1 = 133.5Mhz
MSI K7T266Pro2-RU = 133.8Mhz
Leadtek 7350KDA = 132.77Mhz
ECS K7S5A = 132.77Mhz
